Name: HI4P0201-5Z
Brand: Renesas Electronics America Inc
SKU: HI4P0201-5Z
Availability: InStock

REF: HI4P0201-5Z Renesas Electronics America Inc

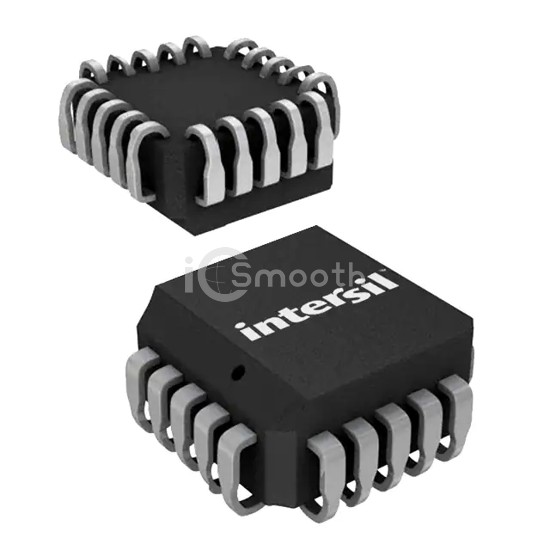

HI4P0201-5Z

IC SWITCH QUAD SPST 20PLCC

HI4P0201-5Z is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPST 20PLCC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 75°C (TA), package / case 20-LCC (J-Lead), number of circuits 4.

Datasheet Request a Quote

In Stock: 8,122

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	80Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	240ns, 500ns (Typ)

-3db Bandwidth	-
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max)	50nA
Crosstalk	-
Operating Temperature	0°C ~ 75°C (TA)
Mounting Type	Surface Mount
Package / Case	20-LCC (J-Lead)
Supplier Device Package	20-PLCC (9x9)
