Name: HI3-0508A-5Z
Brand: Renesas Electronics America Inc
SKU: HI3-0508A-5Z
Price: 12.11 USD
Availability: InStock

REF: HI3-0508A-5Z Renesas Electronics America Inc

HI3-0508A-5Z

Renesas Electronics America Inc

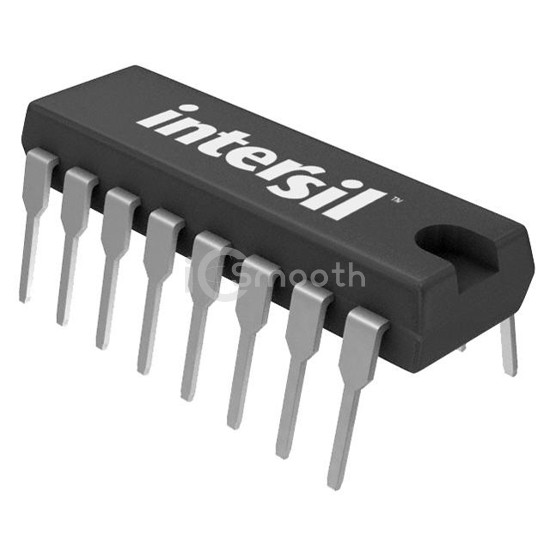

IC MULTIPLEXER 8X1 16DIP

HI3-0508A-5Z is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MULTIPLEXER 8X1 16DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 75°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 1.

Datasheet Request a Quote

In Stock: 3,263

Specifications

18 parameters

Product Status	Active
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	1
On-State Resistance (Max)	1.8kOhm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	300ns, 300ns (Typ)

-3db Bandwidth	-
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	10pF, 25pF
Current - Leakage (IS(off)) (Max)	30pA (Typ)
Crosstalk	-
Operating Temperature	0°C ~ 75°C (TA)
Mounting Type	Through Hole
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-PDIP
