Name: HI3-0201-5Z
Brand: Renesas Electronics America Inc
SKU: HI3-0201-5Z
Price: 9.57 USD
Availability: InStock

REF: HI3-0201-5Z Renesas Electronics America Inc

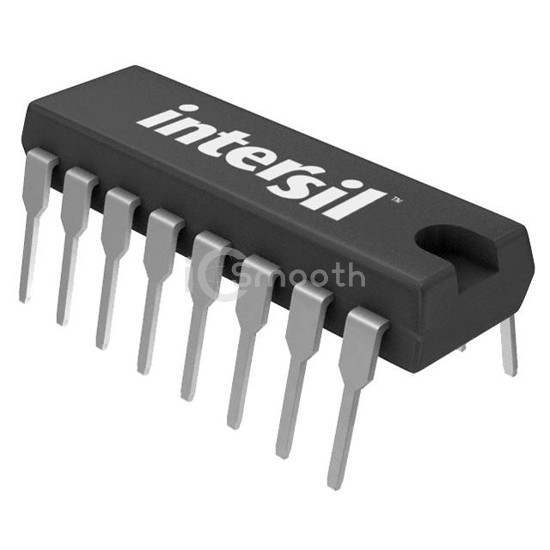

HI3-0201-5Z

Renesas Electronics America Inc

IC SWITCH QUAD SPST 16DIP

HI3-0201-5Z is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPST 16DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 75°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 4.

Datasheet Request a Quote

In Stock: 8,625

Tiered Pricing USD

1+ $9.5700 —

10+ $7.4520 -22%

25+ $6.9240 -28%

100+ $6.3432 -34%

250+ $6.0664 -37%

500+ $5.8995 -38%

1,000+ $5.7622 -40% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	80Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	240ns, 500ns (Typ)

-3db Bandwidth	-
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	5.5pF, 5.5pF
Current - Leakage (IS(off)) (Max)	500nA
Crosstalk	-
Operating Temperature	0°C ~ 75°C (TA)
Mounting Type	Through Hole
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-PDIP
