Name: HI1-5047-2
Brand: Renesas Electronics America Inc
SKU: HI1-5047-2
Availability: InStock

REF: HI1-5047-2 Renesas Electronics America Inc

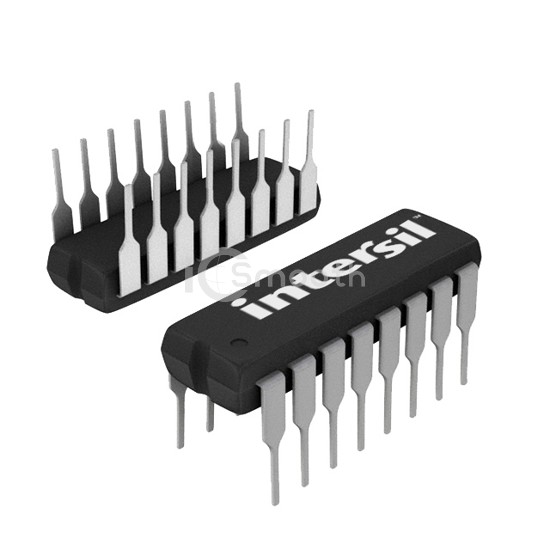

HI1-5047-2

IC SWITCH 4PST 16CDIP

HI1-5047-2 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH 4PST 16CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 16-CDIP (0.300", 7.62mm), number of circuits 1.

Datasheet Request a Quote

In Stock: 4,507

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	4PST - NO
Multiplexer/Demultiplexer Circuit	-
Number of Circuits	1
On-State Resistance (Max)	75Ohm
Channel-to-Channel Matching (ΔRon)	2Ohm
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	500ns, 500ns

-3db Bandwidth	-
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	11pF, 11pF
Current - Leakage (IS(off)) (Max)	2nA
Crosstalk	-88dB @ 100kHz
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Through Hole
Package / Case	16-CDIP (0.300", 7.62mm)
Supplier Device Package	16-CERDIP
