Name: HI1-0507-2
Brand: Renesas Electronics America Inc
SKU: HI1-0507-2
Availability: InStock

REF: HI1-0507-2 Renesas Electronics America Inc

HI1-0507-2

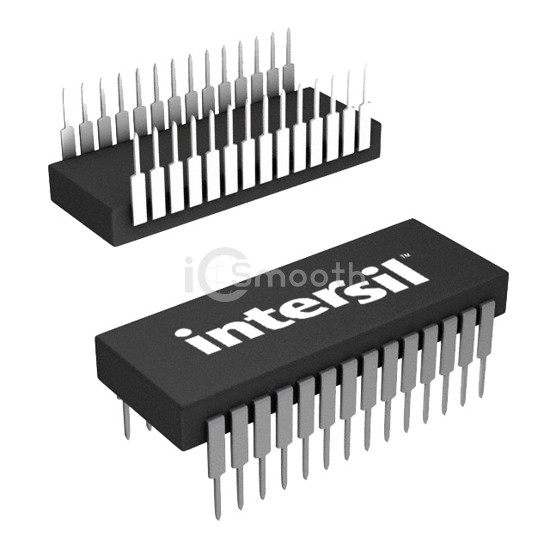

IC MULTIPLEXER DUAL 8X1 28CDIP

HI1-0507-2 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MULTIPLEXER DUAL 8X1 28CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 28-CDIP (0.600", 15.24mm), number of circuits 2.

Datasheet Request a Quote

In Stock: 6,939

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	2
On-State Resistance (Max)	300Ohm
Channel-to-Channel Matching (ΔRon)	15Ohm
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	500ns, 500ns

-3db Bandwidth	-
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	10pF, 30pF
Current - Leakage (IS(off)) (Max)	30pA (Typ)
Crosstalk	-
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Through Hole
Package / Case	28-CDIP (0.600", 15.24mm)
Supplier Device Package	28-CerDip
