Name: HAT2197R-EL-E
Brand: Renesas Electronics America Inc
SKU: HAT2197R-EL-E
Availability: InStock

REF: HAT2197R-EL-E Renesas Electronics America Inc

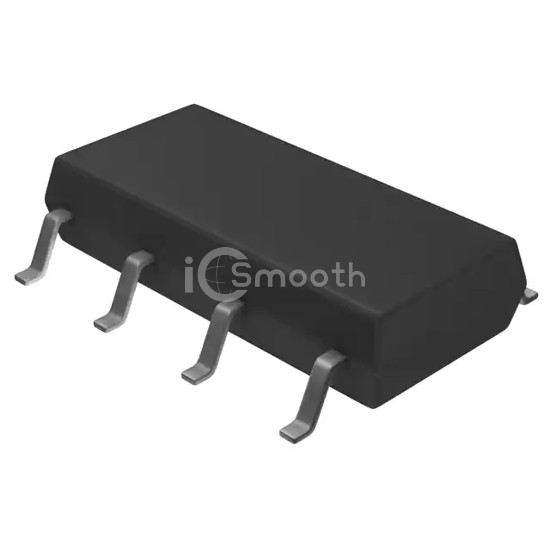

HAT2197R-EL-E

MOSFET N-CH 30V 16A 8SOP

HAT2197R-EL-E is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 30V 16A 8SOP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 7,452

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	16A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.7mOhm @ 8A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	18 nC @ 4.5 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2650 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOP
Package / Case	8-SOIC (0.154", 3.90mm Width)
