Name: HAT2185WPWS-E
Brand: Renesas Electronics America Inc
SKU: HAT2185WPWS-E
Availability: InStock

REF: HAT2185WPWS-E Renesas Electronics America Inc

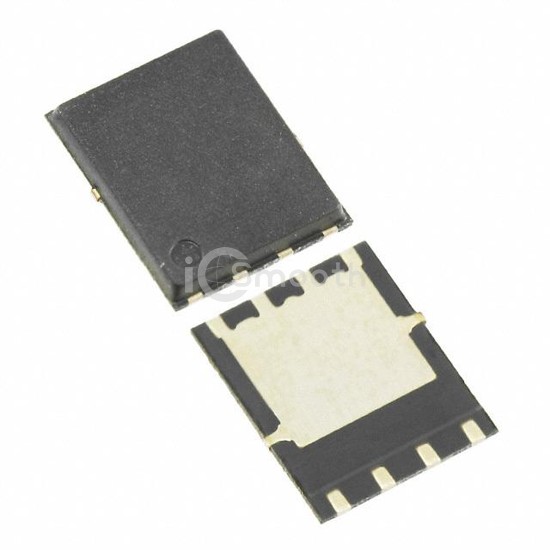

HAT2185WPWS-E

MOSFET N-CH 150V 10A 8WPAK

HAT2185WPWS-E is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 150V 10A 8WPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 8-PowerWDFN.

Request a Quote

In Stock: 1,162

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	10A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	190mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	4.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	9.7 nC @ 10 V

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	430 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	20W (Tc)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	8-WPAK (3)
Package / Case	8-PowerWDFN
