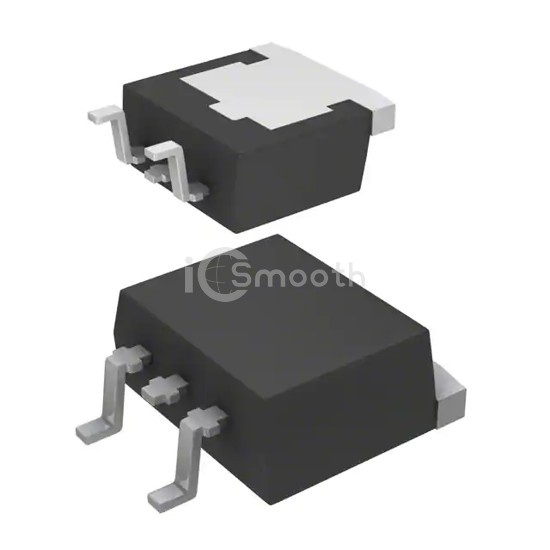

Name: HAF1002-90STL
Brand: Renesas Electronics America Inc
SKU: HAF1002-90STL
Availability: InStock

REF: HAF1002-90STL Renesas Electronics America Inc

HAF1002-90STL

MOSFET P-CH 60V 15A 4LDPAK

HAF1002-90STL is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET P-CH 60V 15A 4LDPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-83.

Request a Quote

In Stock: 3,584

Specifications

17 parameters

Product Status	Obsolete
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	15A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	90mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	50W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LDPAK
Package / Case	SC-83
