Name: H7N1002LSTL-E
Brand: Renesas Electronics America Inc
SKU: H7N1002LSTL-E
Availability: InStock

REF: H7N1002LSTL-E Renesas Electronics America Inc

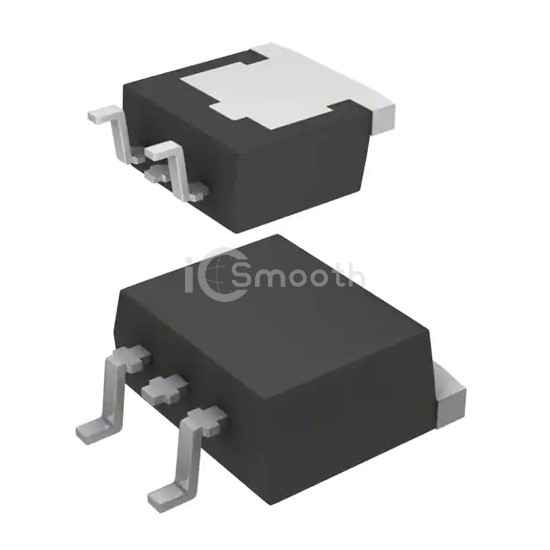

H7N1002LSTL-E

MOSFET N-CH 100V 75A 4LDPAK

H7N1002LSTL-E is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 100V 75A 4LDPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SC-83.

Datasheet Request a Quote

In Stock: 6,109

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	75A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	10mOhm @ 37.5A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	155 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	9700 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	100W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LDPAK
Package / Case	SC-83
