Name: DG441DJZ
Brand: Renesas Electronics America Inc
SKU: DG441DJZ
Price: 3.10 USD
Availability: InStock

REF: DG441DJZ Renesas Electronics America Inc

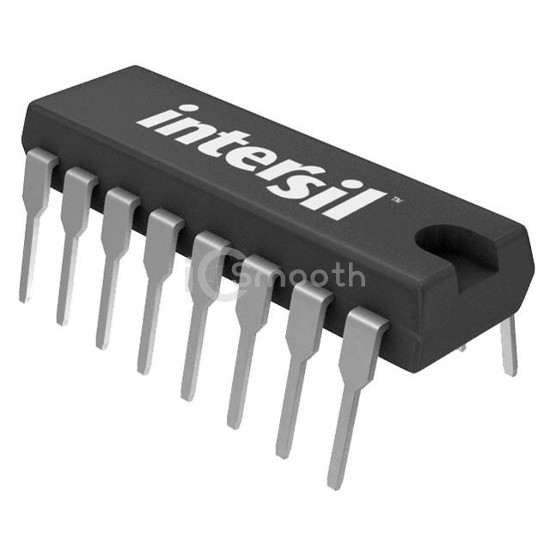

DG441DJZ

Renesas Electronics America Inc

IC SWITCH QUAD SPST 16DIP

DG441DJZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPST 16DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 4.

Datasheet Request a Quote

In Stock: 6,756

Tiered Pricing USD

1+ $3.1000 —

10+ $2.3200 -25%

25+ $2.1260 -31%

100+ $1.9125 -38%

250+ $1.8107 -42% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	85Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	5V ~ 34V
Voltage - Supply, Dual (V±)	±5V ~ 22V
Switch Time (Ton, Toff) (Max)	250ns, 120ns

-3db Bandwidth	-
Charge Injection	-1pC
Channel Capacitance (CS(off), CD(off))	4pF, 4pF
Current - Leakage (IS(off)) (Max)	500pA
Crosstalk	-100dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Through Hole
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-PDIP
