Name: DG413DJZ
Brand: Renesas Electronics America Inc
SKU: DG413DJZ
Price: 3.14 USD
Availability: InStock

REF: DG413DJZ Renesas Electronics America Inc

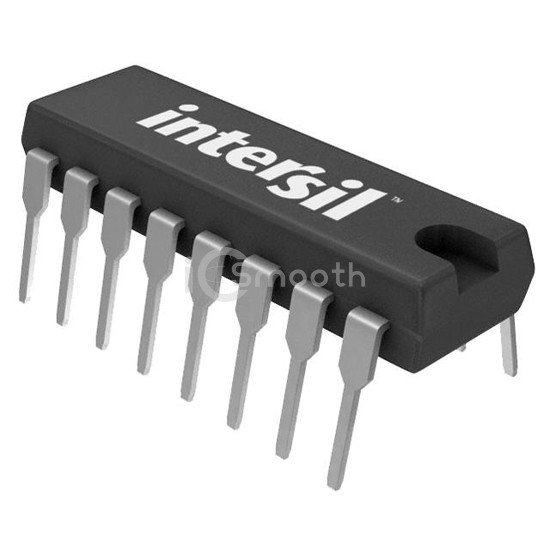

DG413DJZ

Renesas Electronics America Inc

IC SWITCH QUAD SPST 16DIP

DG413DJZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPST 16DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 4.

Datasheet Request a Quote

In Stock: 2

Tiered Pricing USD

1+ $3.1400 —

10+ $2.3560 -25%

25+ $2.1592 -31%

100+ $1.9429 -38%

250+ $1.8397 -41%

500+ $1.7775 -43%

1,000+ $1.7263 -45% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	SPST - NO/NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	35Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	5V ~ 44V
Voltage - Supply, Dual (V±)	±5V ~ 20V
Switch Time (Ton, Toff) (Max)	175ns, 145ns

-3db Bandwidth	-
Charge Injection	5pC
Channel Capacitance (CS(off), CD(off))	9pF, 9pF
Current - Leakage (IS(off)) (Max)	100pA
Crosstalk	-85dB @ 1MHz
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Through Hole
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-PDIP
