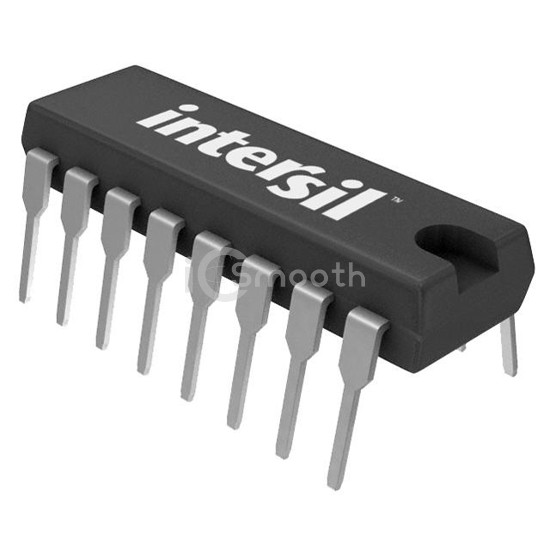

Name: DG408DJZ
Brand: Renesas Electronics America Inc
SKU: DG408DJZ
Price: 3.53 USD
Availability: InStock

REF: DG408DJZ Renesas Electronics America Inc

DG408DJZ

Renesas Electronics America Inc

IC MULTIPLEXER 8X1 16DIP

DG408DJZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MULTIPLEXER 8X1 16DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 1.

Datasheet Request a Quote

In Stock: 5,243

Tiered Pricing USD

1+ $3.5300 —

10+ $2.6590 -25%

25+ $2.4404 -31%

100+ $2.2002 -38%

250+ $2.0857 -41%

500+ $2.0166 -43%

1,000+ $1.9598 -44% BEST

Specifications

18 parameters

Product Status	Active
Switch Circuit	-
Multiplexer/Demultiplexer Circuit	8:1
Number of Circuits	1
On-State Resistance (Max)	100Ohm
Channel-to-Channel Matching (ΔRon)	15Ohm (Max)
Voltage - Supply, Single (V+)	5V ~ 34V
Voltage - Supply, Dual (V±)	±5V ~ 20V
Switch Time (Ton, Toff) (Max)	150ns, 150ns

-3db Bandwidth	-
Charge Injection	20pC
Channel Capacitance (CS(off), CD(off))	3pF, 26pF
Current - Leakage (IS(off)) (Max)	500pA
Crosstalk	-
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Through Hole
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-PDIP
