Name: DG211CJZ
Brand: Renesas Electronics America Inc
SKU: DG211CJZ
Availability: InStock

REF: DG211CJZ Renesas Electronics America Inc

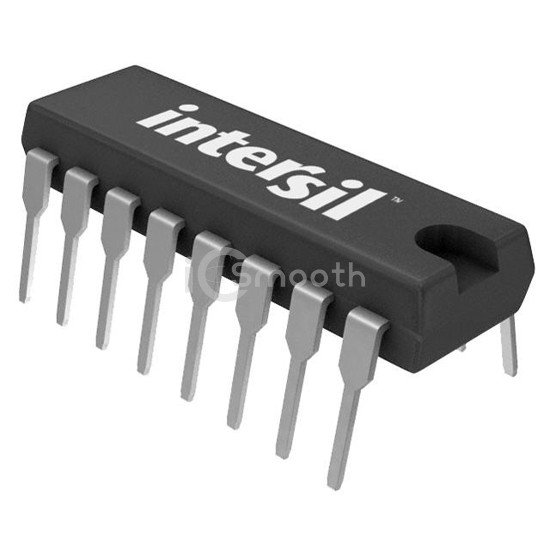

DG211CJZ

IC SWITCH QUAD SPST 16DIP

DG211CJZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC SWITCH QUAD SPST 16DIP. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C (TA), package / case 16-DIP (0.300", 7.62mm), number of circuits 4.

Datasheet Request a Quote

In Stock: 7,509

Specifications

18 parameters

Product Status	Obsolete
Switch Circuit	SPST - NC
Multiplexer/Demultiplexer Circuit	1:1
Number of Circuits	4
On-State Resistance (Max)	175Ohm
Channel-to-Channel Matching (ΔRon)	-
Voltage - Supply, Single (V+)	-
Voltage - Supply, Dual (V±)	±15V
Switch Time (Ton, Toff) (Max)	460ns, 450ns

-3db Bandwidth	-
Charge Injection	-
Channel Capacitance (CS(off), CD(off))	5pF, 5pF
Current - Leakage (IS(off)) (Max)	5nA
Crosstalk	-90dB @ 100kHz
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Through Hole
Package / Case	16-DIP (0.300", 7.62mm)
Supplier Device Package	16-PDIP
