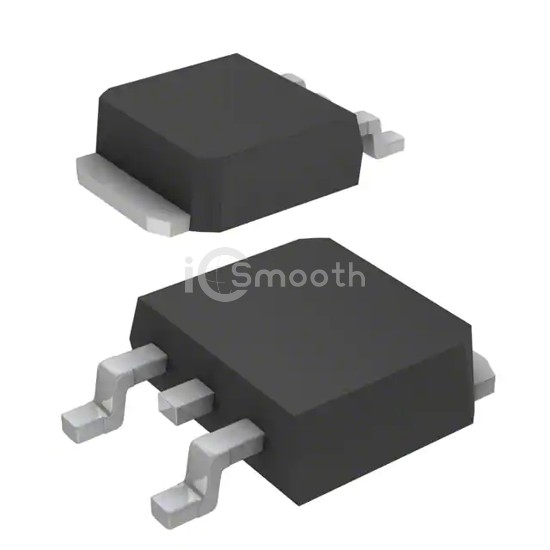

Name: BCR8AS14LJ-T13#B01
Brand: Renesas Electronics America Inc
SKU: BCR8AS14LJ-T13#B01
Price: 4.65 USD
Availability: InStock

REF: BCR8AS14LJ-T13#B01 Renesas Electronics America Inc

BCR8AS14LJ-T13#B01

Renesas Electronics America Inc

TRIAC 700V 8A

BCR8AS14LJ-T13#B01 is a Thyristors - TRIACs manufactured by Renesas Electronics America Inc. TRIAC 700V 8A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 27

Tiered Pricing USD

1+ $4.6500 —

10+ $3.0770 -34%

100+ $2.1830 -53%

500+ $1.8014 -61%

1,000+ $1.6789 -64% BEST

Specifications

13 parameters

Product Status	Active
Triac Type	Standard
Voltage - Off State	700 V
Current - On State (It (RMS)) (Max)	8 A
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	80A @ 60Hz
Current - Gate Trigger (Igt) (Max)	30 mA

Current - Hold (Ih) (Max)	-
Configuration	Single
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	MP-3A
