Name: NTE5602
Brand: NTE Electronics, Inc
SKU: NTE5602
Price: 1.75 USD
Availability: InStock

REF: NTE5602 NTE Electronics, Inc

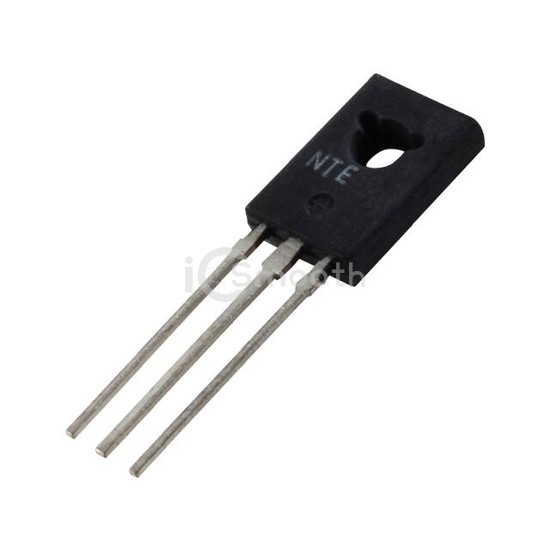

NTE5602

TRIAC-100VRM 4A

NTE5602 is a Thyristors - TRIACs manufactured by NTE Electronics, Inc. TRIAC-100VRM 4A. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C (TJ), package / case TO-225AA, TO-126-3.

Datasheet Request a Quote

In Stock: 54

Specifications

13 parameters

Product Status	Active
Triac Type	Standard
Voltage - Off State	100 V
Current - On State (It (RMS)) (Max)	4 A
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	30A @ 60Hz
Current - Gate Trigger (Igt) (Max)	30 mA

Current - Hold (Ih) (Max)	30 mA
Configuration	Single
Operating Temperature	-40°C ~ 110°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-225AA, TO-126-3
Supplier Device Package	TO-126
