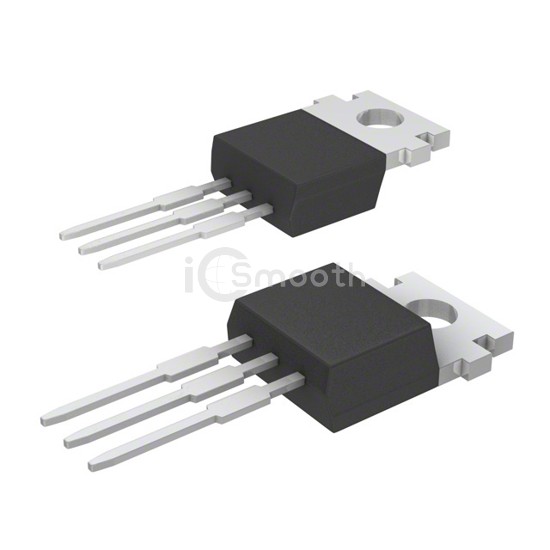

Name: BCR6CM-12LB#BB0
Brand: Renesas Electronics America Inc
SKU: BCR6CM-12LB#BB0
Availability: InStock

REF: BCR6CM-12LB#BB0 Renesas Electronics America Inc

BCR6CM-12LB#BB0

TRIAC 600V 6A

BCR6CM-12LB#BB0 is a Thyristors - TRIACs manufactured by Renesas Electronics America Inc. TRIAC 600V 6A. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 7,099

Specifications

13 parameters

Product Status	Obsolete
Triac Type	Standard
Voltage - Off State	600 V
Current - On State (It (RMS)) (Max)	6 A
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	60A @ 60Hz
Current - Gate Trigger (Igt) (Max)	30 mA

Current - Hold (Ih) (Max)	-
Configuration	Single
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220AB
