Name: BCR4AS-16LH#B00
Brand: Renesas Electronics America Inc
SKU: BCR4AS-16LH#B00
Availability: InStock

REF: BCR4AS-16LH#B00 Renesas Electronics America Inc

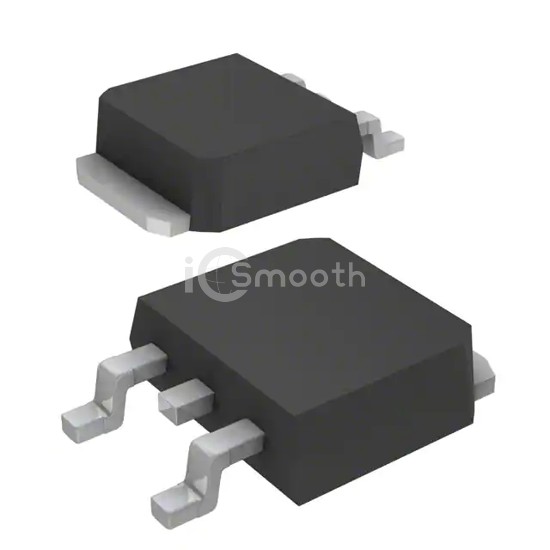

BCR4AS-16LH#B00

TRIAC 800V 4A

BCR4AS-16LH#B00 is a Thyristors - TRIACs manufactured by Renesas Electronics America Inc. TRIAC 800V 4A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.

Datasheet Request a Quote

In Stock: 2,285

Specifications

13 parameters

Product Status	Discontinued at Digi-Key
Triac Type	Standard
Voltage - Off State	800 V
Current - On State (It (RMS)) (Max)	4 A
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	30A @ 60Hz
Current - Gate Trigger (Igt) (Max)	35 mA

Current - Hold (Ih) (Max)	-
Configuration	Single
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package	MP-3A
