Name: BCR30CM-8LB#BH0
Brand: Renesas Electronics America Inc
SKU: BCR30CM-8LB#BH0
Availability: InStock

REF: BCR30CM-8LB#BH0 Renesas Electronics America Inc

BCR30CM-8LB#BH0

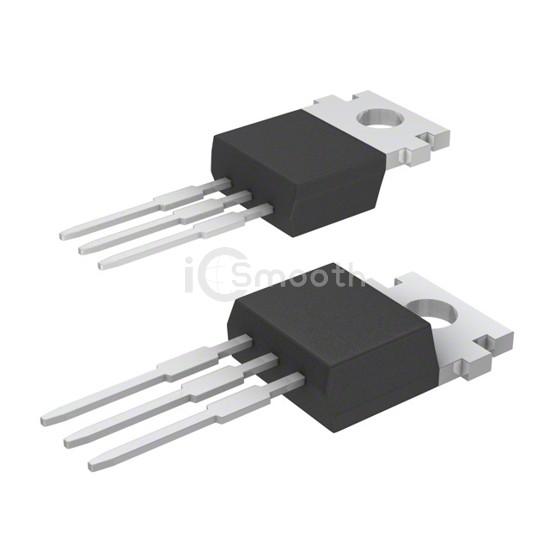

TRIAC 400V 30A TO220

BCR30CM-8LB#BH0 is a Thyristors - TRIACs manufactured by Renesas Electronics America Inc. TRIAC 400V 30A TO220. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 2,812

Specifications

13 parameters

Product Status	Active
Triac Type	Standard
Voltage - Off State	400 V
Current - On State (It (RMS)) (Max)	30 A
Voltage - Gate Trigger (Vgt) (Max)	2 V
Current - Non Rep. Surge 50, 60Hz (Itsm)	300A @ 60Hz
Current - Gate Trigger (Igt) (Max)	30 mA

Current - Hold (Ih) (Max)	-
Configuration	Single
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3
Supplier Device Package	TO-220ABA
