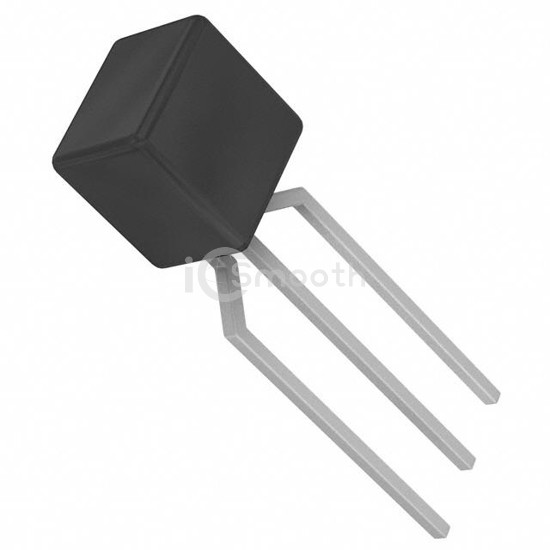

Name: 2SK4151TZ-E
Brand: Renesas Electronics America Inc
SKU: 2SK4151TZ-E
Availability: InStock

REF: 2SK4151TZ-E Renesas Electronics America Inc

2SK4151TZ-E

MOSFET N-CH 150V 1A TO92

2SK4151TZ-E is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 150V 1A TO92. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA).

Datasheet Request a Quote

In Stock: 8,012

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4V
Rds On (Max) @ Id, Vgs	1.95Ohm @ 500mA, 4V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	3.5 nC @ 4 V

Vgs (Max)	±10V
Input Capacitance (Ciss) (Max) @ Vds	98 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	750mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-92
Package / Case	TO-226-3, TO-92-3 (TO-226AA)
