Name: 2SK3659-AZ
Brand: Renesas Electronics America Inc
SKU: 2SK3659-AZ
Price: 1.40 USD
Availability: InStock

REF: 2SK3659-AZ Renesas Electronics America Inc

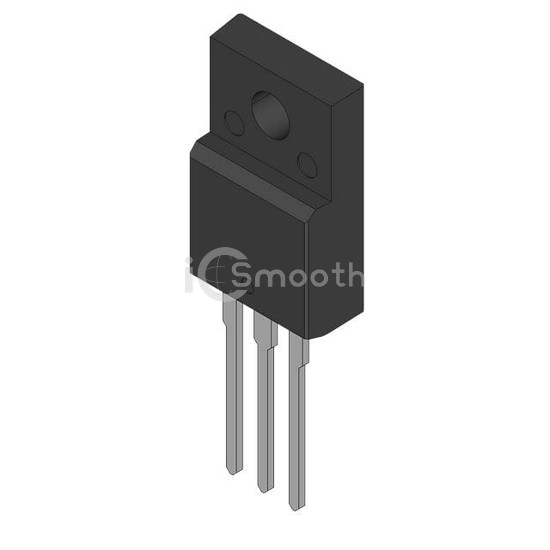

2SK3659-AZ

Renesas Electronics America Inc

MOSFET N-CH 20V 65A TO220-3

2SK3659-AZ is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 20V 65A TO220-3. Key specifications: mounting type Through Hole, package / case TO-220-3 Isolated Tab.

Datasheet Request a Quote

In Stock: 1,772

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	65A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	-
Rds On (Max) @ Id, Vgs	5.7mOhm @ 40A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	32 nC @ 10 V

Vgs (Max)	-
Input Capacitance (Ciss) (Max) @ Vds	1700 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3 Isolated Tab
