Name: 2SK3430-Z-E1-AZ
Brand: Renesas Electronics America Inc
SKU: 2SK3430-Z-E1-AZ
Availability: InStock

REF: 2SK3430-Z-E1-AZ Renesas Electronics America Inc

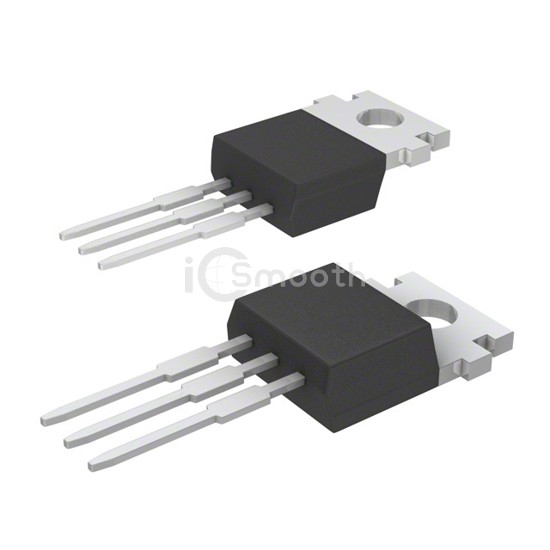

2SK3430-Z-E1-AZ

MOSFET N-CH 40V 80A TO220AB

2SK3430-Z-E1-AZ is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 40V 80A TO220AB. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 2,652

Specifications

17 parameters

Product Status	Obsolete
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40 V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	7.3mOhm @ 40A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	50 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2800 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1.5W (Ta), 84W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220AB
Package / Case	TO-220-3
