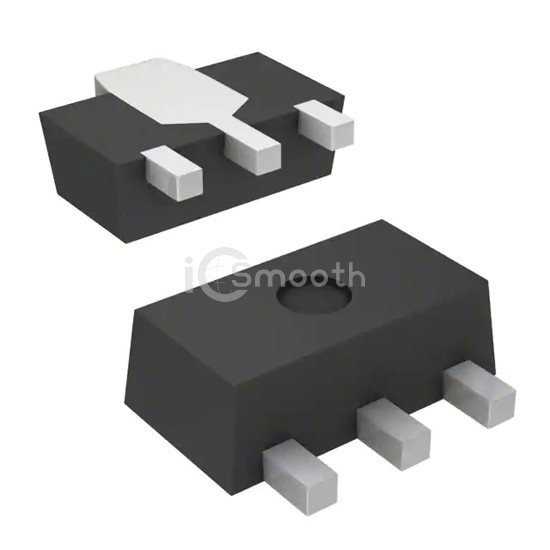

Name: 2SK2315TYTR-E
Brand: Renesas Electronics America Inc
SKU: 2SK2315TYTR-E
Availability: InStock

REF: 2SK2315TYTR-E Renesas Electronics America Inc

2SK2315TYTR-E

MOSFET N-CH 60V 2A UPAK

2SK2315TYTR-E is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET N-CH 60V 2A UPAK. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-243AA.

Datasheet Request a Quote

In Stock: 3,153

Specifications

17 parameters

Product Status	Last Time Buy
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	3V, 4V
Rds On (Max) @ Id, Vgs	450mOhm @ 1A, 4V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	173 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	UPAK
Package / Case	TO-243AA
