Name: 2SJ649-AZ
Brand: Renesas Electronics America Inc
SKU: 2SJ649-AZ
Availability: InStock

REF: 2SJ649-AZ Renesas Electronics America Inc

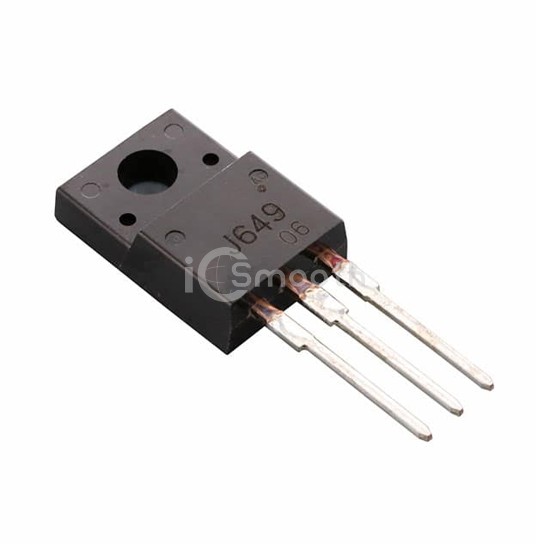

2SJ649-AZ

MOSFET P-CH 60V 20A TO220

2SJ649-AZ is a Transistors - FETs, MOSFETs - Single manufactured by Renesas Electronics America Inc. MOSFET P-CH 60V 20A TO220. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-220-3 Isolated Tab.

Datasheet Request a Quote

In Stock: 7,343

Specifications

17 parameters

Product Status	Last Time Buy
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4V, 10V
Rds On (Max) @ Id, Vgs	48mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	38 nC @ 10 V

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1900 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	2W (Ta), 25W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220 Isolated Tab
Package / Case	TO-220-3 Isolated Tab
