Name: RMP3N90IP
Brand: Rectron USA
SKU: RMP3N90IP
Price: 0.33 USD
Availability: InStock

REF: RMP3N90IP Rectron USA

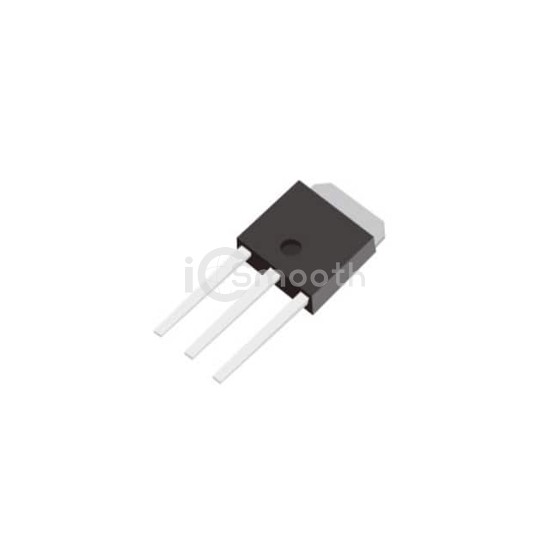

RMP3N90IP

MOSFET N-CHANNEL 900V 3A TO251

RMP3N90IP is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET N-CHANNEL 900V 3A TO251. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Stub Leads, IPak.

Request a Quote

In Stock: 7,115

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	900 V
Current - Continuous Drain (Id) @ 25°C	3A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3.2Ohm @ 1.5A, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	850 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	50W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-251
Package / Case	TO-251-3 Stub Leads, IPak
