Name: RMA7P20ED1
Brand: Rectron USA
SKU: RMA7P20ED1
Price: 0.03 USD
Availability: InStock

REF: RMA7P20ED1 Rectron USA

RMA7P20ED1

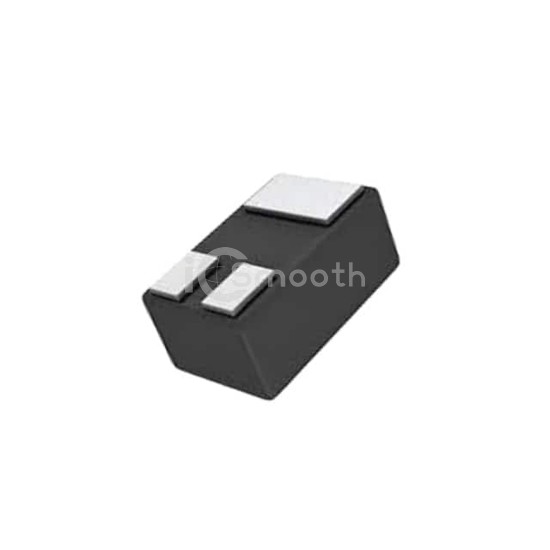

MOSFET P-CH 20V 700MA DFN1006-3

RMA7P20ED1 is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET P-CH 20V 700MA DFN1006-3. Key specifications: mounting type Surface Mount, operating temperature -50°C ~ 150°C (TJ), package / case SC-101, SOT-883.

Request a Quote

In Stock: 3,544

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	700mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	420mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	52 pF @ 4 V
FET Feature	-
Power Dissipation (Max)	900mW (Ta)
Operating Temperature	-50°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN1006-3
Package / Case	SC-101, SOT-883
