Name: RMA4N60092
Brand: Rectron USA
SKU: RMA4N60092
Price: 0.14 USD
Availability: InStock

REF: RMA4N60092 Rectron USA

RMA4N60092

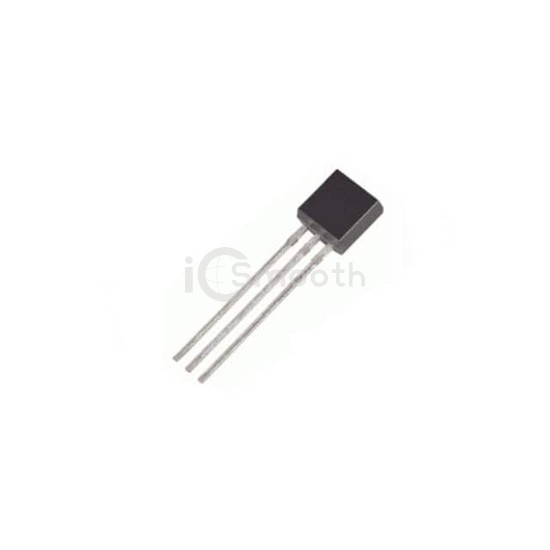

MOSFET N-CHANNEL 600V 400MA TO92

RMA4N60092 is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET N-CHANNEL 600V 400MA TO92. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA) Formed Leads.

Request a Quote

In Stock: 3,462

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	400mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	8.5Ohm @ 200mA, 10V
Vgs(th) (Max) @ Id	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	130 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	2.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-92
Package / Case	TO-226-3, TO-92-3 (TO-226AA) Formed Leads
