RM80N30DN

In Stock: 7,646

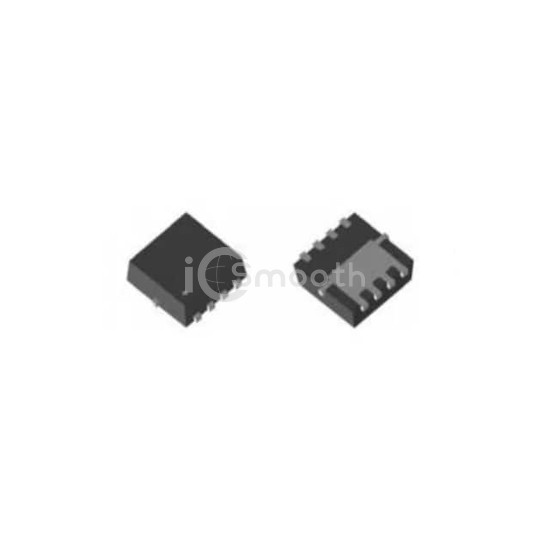

RM80N30DN - Rectron USA - Transistors - FETs, MOSFETs - Single
REF: RM80N30DN Rectron USA
RM80N30DN

Rectron USA

MOSFET N-CHANNEL 30V 80A 8PPAK

RM80N30DN is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET N-CHANNEL 30V 80A 8PPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerWDFN.

Request a Quote

In Stock: 7,646

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.8mOhm @ 24A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3190 pF @ 25 V
FET Feature-
Power Dissipation (Max)66W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-PPAK (3x3)
Package / Case8-PowerWDFN
