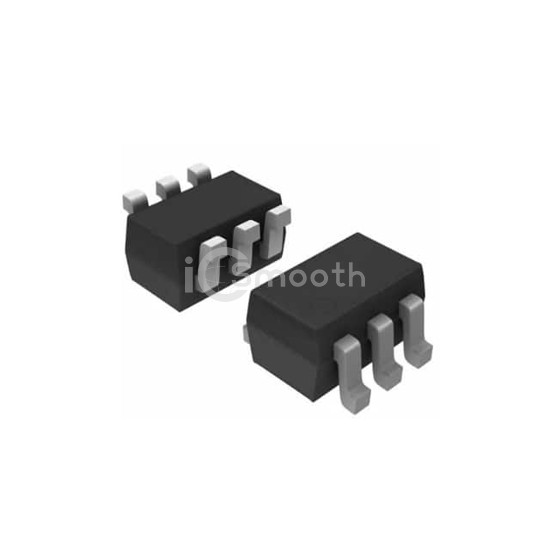

RM6A5N30S6

MOSFET N-CH 32V 6.5A SOT23-6

RM6A5N30S6 is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET N-CH 32V 6.5A SOT23-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6.

Request a Quote

In Stock: 6,771

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	32 V
Current - Continuous Drain (Id) @ 25°C	6.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	35mOhm @ 500mA, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	325 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	2.7W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-6
Package / Case	SOT-23-6
