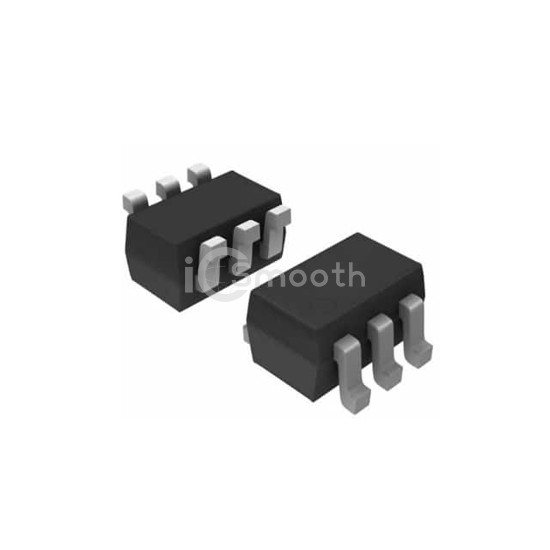

RM5A1P30S6

MOSFET P-CH 30V 5.1A SOT23-6

RM5A1P30S6 is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET P-CH 30V 5.1A SOT23-6. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SOT-23-6.

Request a Quote

In Stock: 1,827

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	5.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	32mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1280 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1.56W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-6
Package / Case	SOT-23-6
