Name: RM50N60TI
Brand: Rectron USA
SKU: RM50N60TI
Price: 0.24 USD
Availability: InStock

REF: RM50N60TI Rectron USA

RM50N60TI

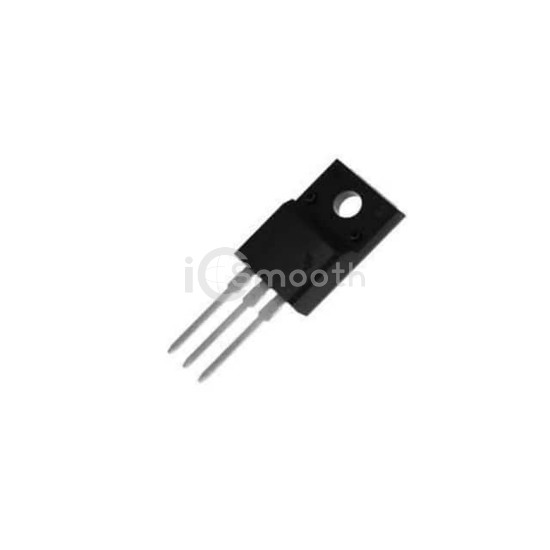

MOSFET N-CHANNEL 60V 50A TO220F

RM50N60TI is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET N-CHANNEL 60V 50A TO220F. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3 Full Pack.

Request a Quote

In Stock: 8,091

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	50A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	20mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2050 pF @ 30 V
FET Feature	-
Power Dissipation (Max)	85W (Ta)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220F
Package / Case	TO-220-3 Full Pack
