Name: RM50N30DN
Brand: Rectron USA
SKU: RM50N30DN
Price: 0.24 USD
Availability: InStock

REF: RM50N30DN Rectron USA

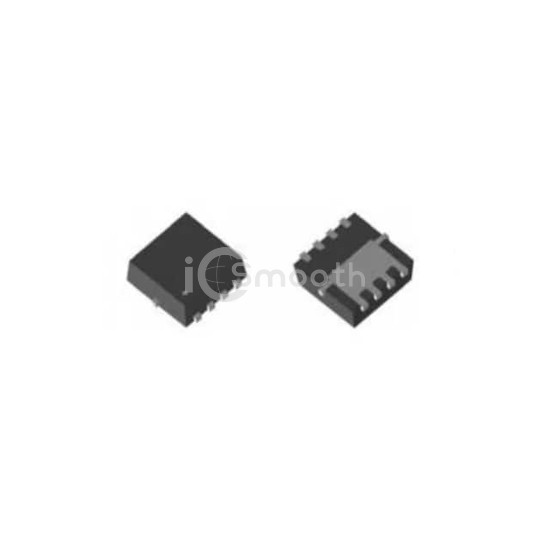

RM50N30DN

MOSFET N-CHANNEL 30V 50A 8DFN

RM50N30DN is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET N-CHANNEL 30V 50A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerWDFN.

Request a Quote

In Stock: 2,638

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	50A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.5mOhm @ 12A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1840 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	3.57W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN (3x3)
Package / Case	8-PowerWDFN
