Name: RM48N100D3
Brand: Rectron USA
SKU: RM48N100D3
Price: 0.30 USD
Availability: InStock

REF: RM48N100D3 Rectron USA

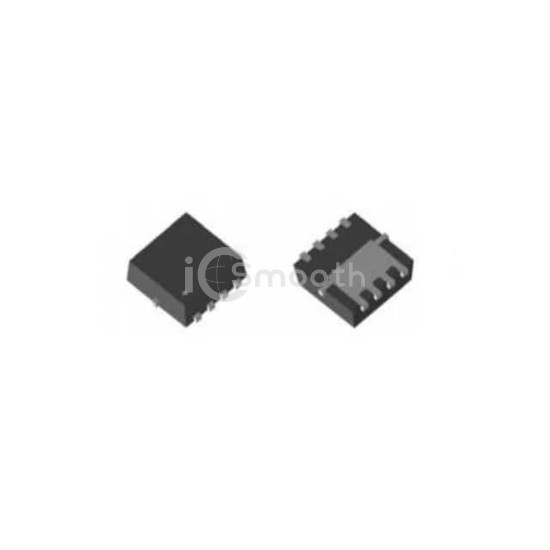

RM48N100D3

MOSFET N-CHANNEL 100V 48A 8DFN

RM48N100D3 is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET N-CHANNEL 100V 48A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -50°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Request a Quote

In Stock: 6,706

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100 V
Current - Continuous Drain (Id) @ 25°C	48A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	13.6mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	+20V, -12V
Input Capacitance (Ciss) (Max) @ Vds	3280 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	61W (Tc)
Operating Temperature	-50°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN-EP (3x3)
Package / Case	8-PowerVDFN
