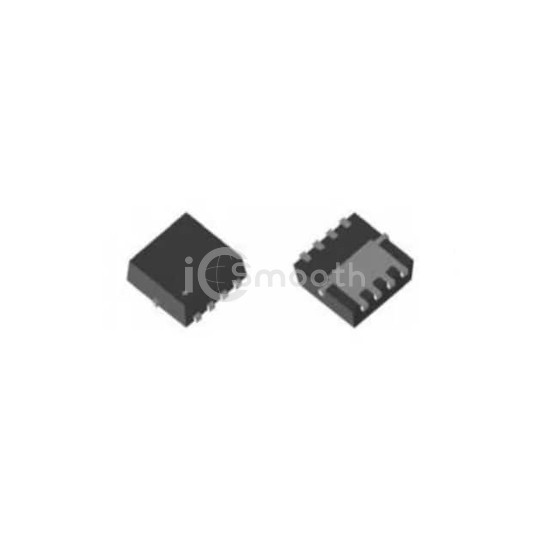

RM45P20D3

MOSFET P-CHANNEL 19V 45A 8DFN

RM45P20D3 is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET P-CHANNEL 19V 45A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Request a Quote

In Stock: 9,222

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	19 V
Current - Continuous Drain (Id) @ 25°C	45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	7mOhm @ 20A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	3500 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	80W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN-EP (3.3x3.3)
Package / Case	8-PowerVDFN
