Name: RM45N600T7
Brand: Rectron USA
SKU: RM45N600T7
Price: 2.90 USD
Availability: InStock

REF: RM45N600T7 Rectron USA

RM45N600T7

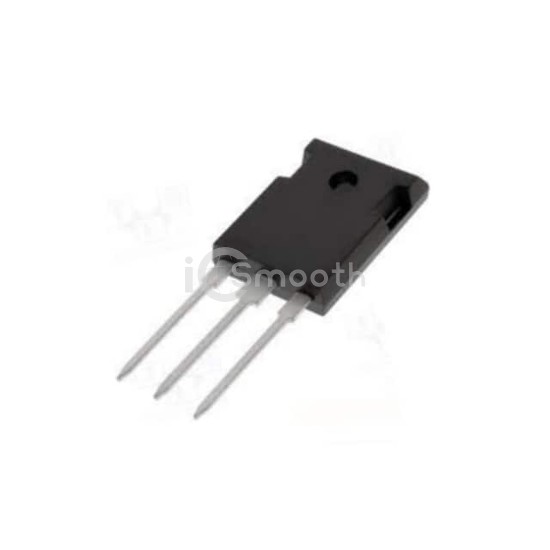

MOSFET N-CH 600V 44.5A TO247

RM45N600T7 is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET N-CH 600V 44.5A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Request a Quote

In Stock: 6,481

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600 V
Current - Continuous Drain (Id) @ 25°C	44.5A (Tj)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	90mOhm @ 15.6A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	2808 pF @ 100 V
FET Feature	-
Power Dissipation (Max)	431W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247
Package / Case	TO-247-3
