Name: RM30P30D3
Brand: Rectron USA
SKU: RM30P30D3
Price: 0.22 USD
Availability: InStock

REF: RM30P30D3 Rectron USA

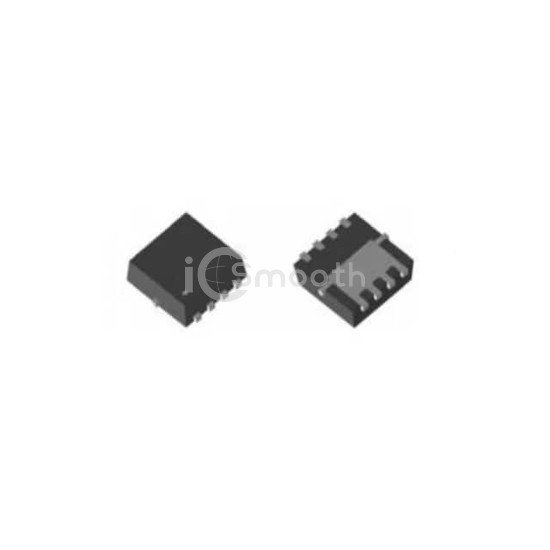

RM30P30D3

MOSFET P-CHANNEL 30V 30A 8DFN

RM30P30D3 is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET P-CHANNEL 30V 30A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Request a Quote

In Stock: 5,188

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	30A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	10mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2150 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	40W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-DFN-EP (3x3)
Package / Case	8-PowerVDFN
