RM2309E

In Stock: 3,954

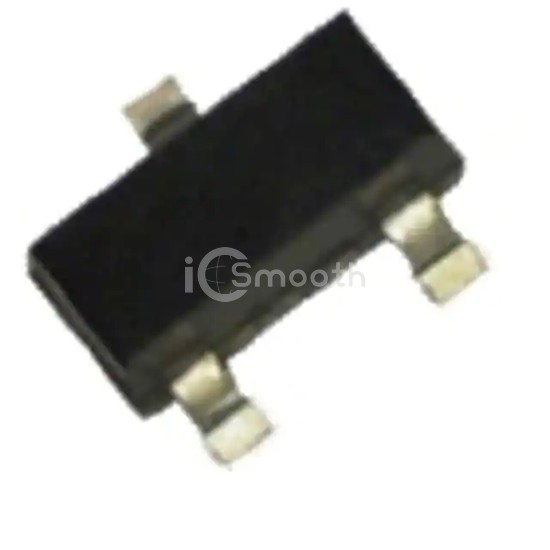

RM2309E - Rectron USA - Transistors - FETs, MOSFETs - Single
REF: RM2309E Rectron USA
RM2309E

Rectron USA

MOSFET P-CHANNEL 30V SOT23

RM2309E is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET P-CHANNEL 30V SOT23. Key specifications: mounting type Surface Mount, package / case TO-236-3, SC-59, SOT-23-3.

Request a Quote

In Stock: 3,954

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C-
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs38mOhm @ 1A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds-
FET Feature-
Power Dissipation (Max)-
Operating Temperature-
Mounting TypeSurface Mount
Supplier Device PackageSOT-23
Package / CaseTO-236-3, SC-59, SOT-23-3
