Name: RM2309
Brand: Rectron USA
SKU: RM2309
Price: 0.04 USD
Availability: InStock

REF: RM2309 Rectron USA

RM2309

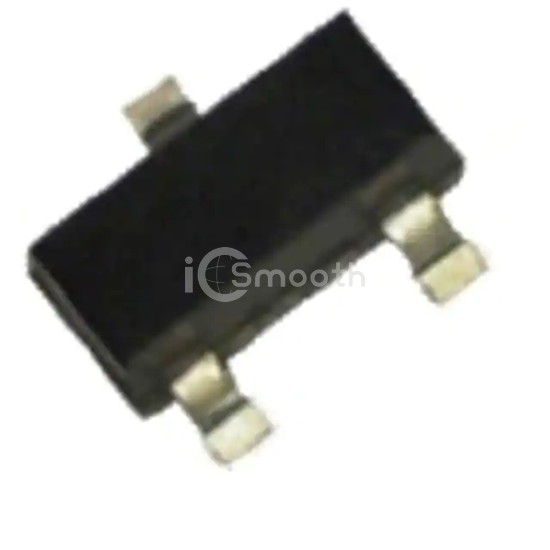

MOSFET P-CHANNEL 30V 3.1A SOT23

RM2309 is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET P-CHANNEL 30V 3.1A SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Request a Quote

In Stock: 1,814

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	3.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	70mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	226 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
