Name: RM2305B
Brand: Rectron USA
SKU: RM2305B
Price: 0.04 USD
Availability: InStock

REF: RM2305B Rectron USA

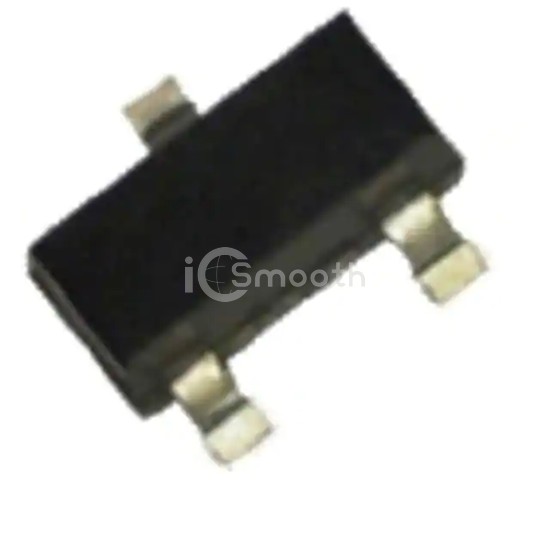

RM2305B

MOSFET P-CH 20V 3A/4.1A SOT23

RM2305B is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET P-CH 20V 3A/4.1A SOT23. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.

Request a Quote

In Stock: 6,405

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20 V
Current - Continuous Drain (Id) @ 25°C	3A (Ta), 4.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	52mOhm @ 4.1A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	740 pF @ 4 V
FET Feature	-
Power Dissipation (Max)	1.7W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23
Package / Case	TO-236-3, SC-59, SOT-23-3
