Name: RM21N650T7
Brand: Rectron USA
SKU: RM21N650T7
Price: 1.60 USD
Availability: InStock

REF: RM21N650T7 Rectron USA

RM21N650T7

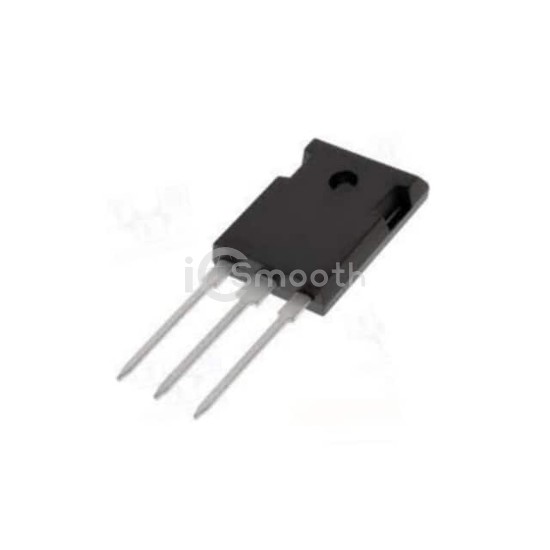

MOSFET N-CHANNEL 650V 21A TO247

RM21N650T7 is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET N-CHANNEL 650V 21A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3.

Request a Quote

In Stock: 2,733

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	21A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	180mOhm @ 10.5A, 10V
Vgs(th) (Max) @ Id	3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1950 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	200W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247
Package / Case	TO-247-3
