RM20P30D3

In Stock: 3,359

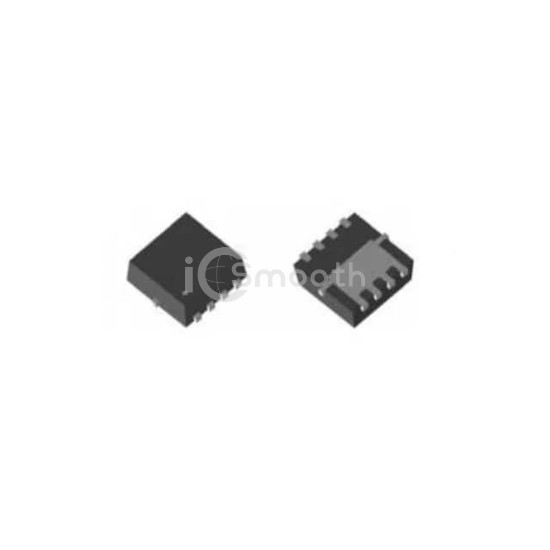

RM20P30D3 - Rectron USA - Transistors - FETs, MOSFETs - Single
REF: RM20P30D3 Rectron USA
RM20P30D3

Rectron USA

MOSFET P-CHANNEL 30V 20A 8DFN

RM20P30D3 is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET P-CHANNEL 30V 20A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.

Request a Quote

In Stock: 3,359

Specifications

17 parameters
Product StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C20A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs15mOhm @ 15A, 10V
Vgs(th) (Max) @ Id1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs-
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds2130 pF @ 25 V
FET Feature-
Power Dissipation (Max)35W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-DFN-EP (3x3)
Package / Case8-PowerVDFN
