Name: RM1A4N150S6
Brand: Rectron USA
SKU: RM1A4N150S6
Price: 0.18 USD
Availability: InStock

REF: RM1A4N150S6 Rectron USA

RM1A4N150S6

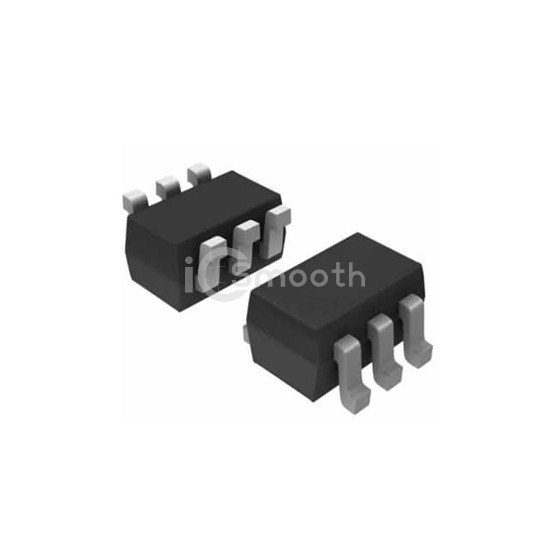

MOSFET N-CH 150V 1.4A SOT23-6

RM1A4N150S6 is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET N-CH 150V 1.4A SOT23-6. Key specifications: mounting type Surface Mount, operating temperature -50°C ~ 150°C (TJ), package / case SOT-23-6.

Request a Quote

In Stock: 5,970

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	1.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	480mOhm @ 1A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	700 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1.56W (Tc)
Operating Temperature	-50°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-6
Package / Case	SOT-23-6
