Name: RM12N650TI
Brand: Rectron USA
SKU: RM12N650TI
Price: 0.67 USD
Availability: InStock

REF: RM12N650TI Rectron USA

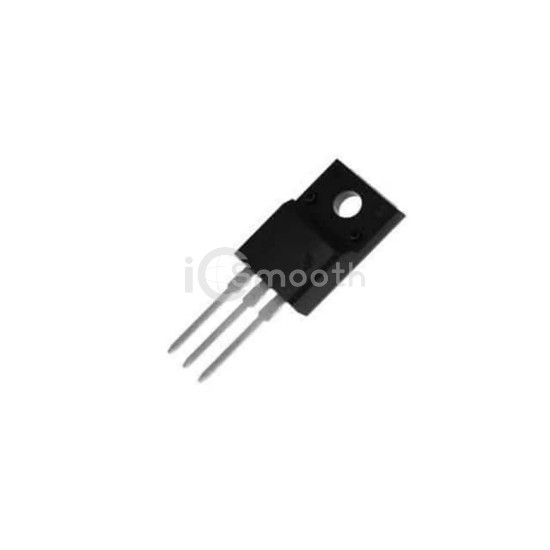

RM12N650TI

MOSFET N-CH 650V 11.5A TO220F

RM12N650TI is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET N-CH 650V 11.5A TO220F. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack.

Request a Quote

In Stock: 3,167

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	11.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	360mOhm @ 7A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	870 pF @ 50 V
FET Feature	-
Power Dissipation (Max)	32.6W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220F
Package / Case	TO-220-3 Full Pack
