Name: RM1216
Brand: Rectron USA
SKU: RM1216
Price: 0.12 USD
Availability: InStock

REF: RM1216 Rectron USA

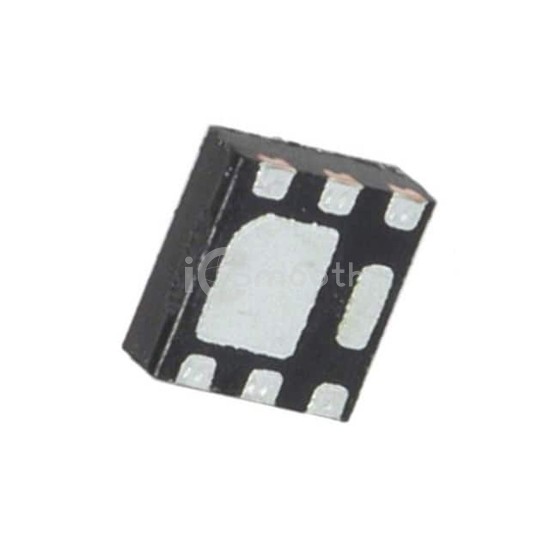

RM1216

MOSFET P-CHANNEL 12V 16A 6DFN

RM1216 is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET P-CHANNEL 12V 16A 6DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Request a Quote

In Stock: 5,441

Specifications

17 parameters

Product Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12 V
Current - Continuous Drain (Id) @ 25°C	16A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	18mOhm @ 6.7A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±12V
Input Capacitance (Ciss) (Max) @ Vds	2700 pF @ 10 V
FET Feature	-
Power Dissipation (Max)	18W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-DFN (2x2)
Package / Case	6-WDFN Exposed Pad
