Name: RM110N82T2
Brand: Rectron USA
SKU: RM110N82T2
Price: 0.44 USD
Availability: InStock

REF: RM110N82T2 Rectron USA

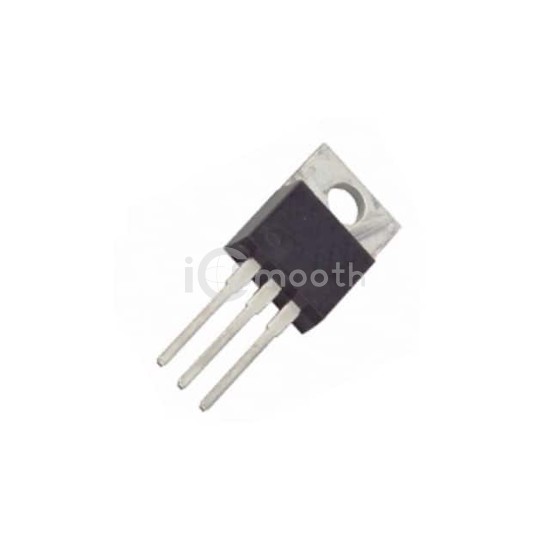

RM110N82T2

MOSFET N-CH 82V 110A TO220-3

RM110N82T2 is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET N-CH 82V 110A TO220-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3.

Request a Quote

In Stock: 9,253

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	82 V
Current - Continuous Drain (Id) @ 25°C	110A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	7mOhm @ 20A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6400 pF @ 40 V
FET Feature	-
Power Dissipation (Max)	200W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
