Name: RM10N30D2
Brand: Rectron USA
SKU: RM10N30D2
Price: 0.07 USD
Availability: InStock

REF: RM10N30D2 Rectron USA

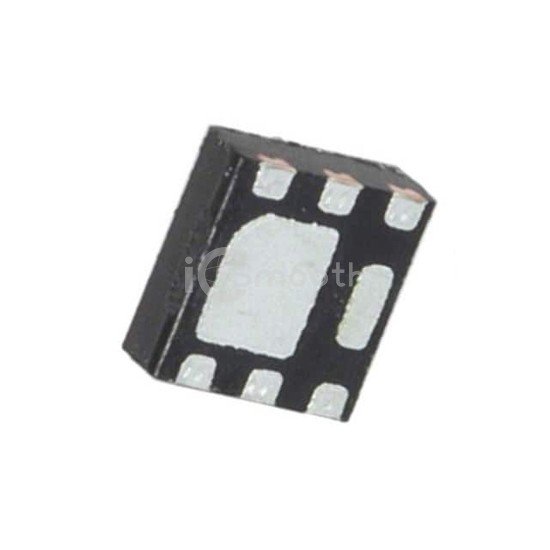

RM10N30D2

MOSFET N-CH 30V 10A 6PQFN

RM10N30D2 is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET N-CH 30V 10A 6PQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad.

Request a Quote

In Stock: 4,747

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30 V
Current - Continuous Drain (Id) @ 25°C	10A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	12mOhm @ 11A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	1415 pF @ 15 V
FET Feature	-
Power Dissipation (Max)	730mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-PQFN (2x2)
Package / Case	6-WDFN Exposed Pad
