Name: 2N7002KD1
Brand: Rectron USA
SKU: 2N7002KD1
Price: 0.03 USD
Availability: InStock

REF: 2N7002KD1 Rectron USA

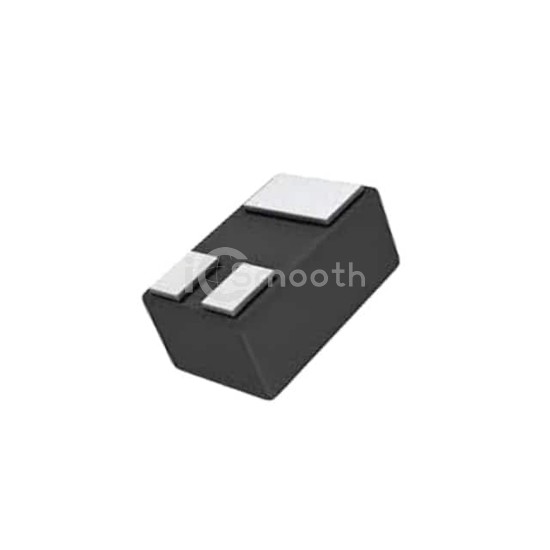

2N7002KD1

MOSFET N-CH 60V 350MA DFN1006-3

2N7002KD1 is a Transistors - FETs, MOSFETs - Single manufactured by Rectron USA. MOSFET N-CH 60V 350MA DFN1006-3. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-101, SOT-883.

Request a Quote

In Stock: 2,085

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60 V
Current - Continuous Drain (Id) @ 25°C	350mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	2.8Ohm @ 200mA, 10V
Vgs(th) (Max) @ Id	1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	50 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	350mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN1006-3
Package / Case	SC-101, SOT-883
