Name: P3M173K0K3
Brand: PN Junction Semiconductor
SKU: P3M173K0K3
Price: 5.08 USD
Availability: InStock

REF: P3M173K0K3 PN Junction Semiconductor

P3M173K0K3

PN Junction Semiconductor

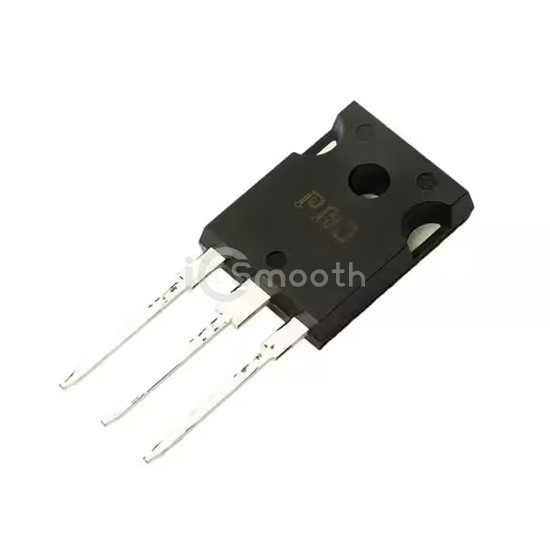

SICFET N-CH 1700V 4A TO-247-3

P3M173K0K3 is a Transistors - FETs, MOSFETs - Single manufactured by PN Junction Semiconductor. SICFET N-CH 1700V 4A TO-247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3.

Datasheet Request a Quote

In Stock: 1,000

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	1700 V
Current - Continuous Drain (Id) @ 25°C	4A
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	3.6Ohm @ 0.6A, 15V
Vgs(th) (Max) @ Id	2.2V @ 0.6mA (Typ)
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	+19V, -8V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	63W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-247-3L
Package / Case	TO-247-3
