Name: P3M06300T3
Brand: PN Junction Semiconductor
SKU: P3M06300T3
Price: 4.98 USD
Availability: InStock

REF: P3M06300T3 PN Junction Semiconductor

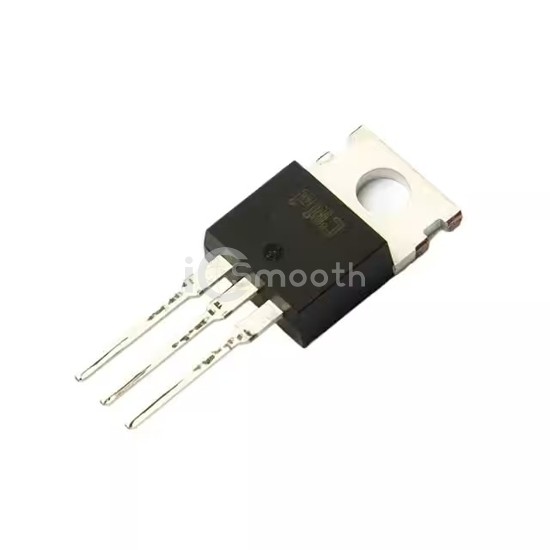

P3M06300T3

PN Junction Semiconductor

SICFET N-CH 650V 9A TO-220-3

P3M06300T3 is a Transistors - FETs, MOSFETs - Single manufactured by PN Junction Semiconductor. SICFET N-CH 650V 9A TO-220-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-2.

Datasheet Request a Quote

In Stock: 2,000

Specifications

17 parameters

Product Status	Active
FET Type	N-Channel
Technology	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss)	650 V
Current - Continuous Drain (Id) @ 25°C	9A
Drive Voltage (Max Rds On, Min Rds On)	15V
Rds On (Max) @ Id, Vgs	500mOhm @ 4.5A, 15V
Vgs(th) (Max) @ Id	2.2V @ 5mA
Gate Charge (Qg) (Max) @ Vgs	-

Vgs (Max)	+20V, -8V
Input Capacitance (Ciss) (Max) @ Vds	-
FET Feature	-
Power Dissipation (Max)	35W
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-2L
Package / Case	TO-220-2
