PSMP075N15NS1_T0_00601

In Stock: 2,000

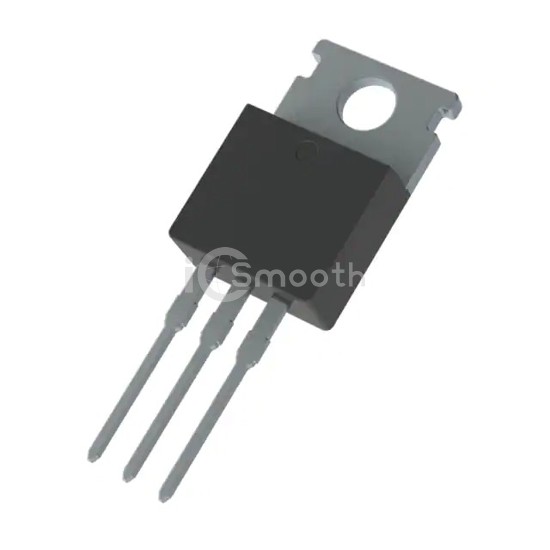

PSMP075N15NS1_T0_00601 - Panjit International Inc. - Transistors - FETs, MOSFETs - Single
REF: PSMP075N15NS1_T0_00601 Panjit International Inc.
PSMP075N15NS1_T0_00601

Panjit International Inc.

150V N-CHANNEL ENHANCEMENT MODE

PSMP075N15NS1_T0_00601 is a Transistors - FETs, MOSFETs - Single manufactured by Panjit International Inc.. 150V N-CHANNEL ENHANCEMENT MODE. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-220-3.

Datasheet Request a Quote

In Stock: 2,000

Specifications

17 parameters
Product StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C125A (Tc)
Drive Voltage (Max Rds On, Min Rds On)7V, 10V
Rds On (Max) @ Id, Vgs7.5mOhm @ 50A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs97 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds6511 pF @ 75 V
FET Feature-
Power Dissipation (Max)258.6W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-220AB-L
Package / CaseTO-220-3
