Name: PJS6630_S2_00001
Brand: Panjit International Inc.
SKU: PJS6630_S2_00001
Price: 0.14 USD
Availability: InStock

REF: PJS6630_S2_00001 Panjit International Inc.

PJS6630_S2_00001

Panjit International Inc.

20V P-MOSFET LOAD SWITCH WITH LE

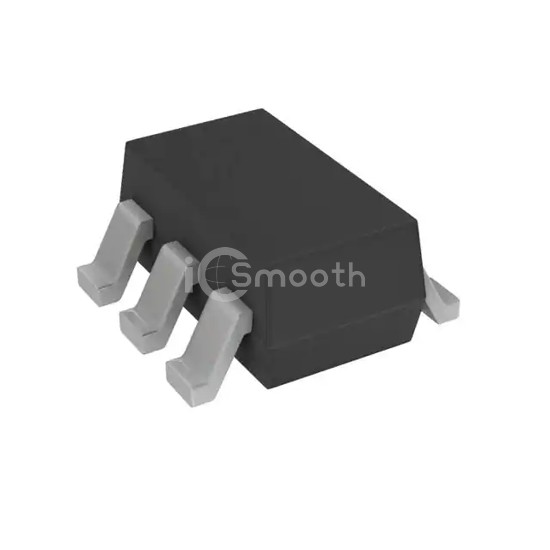

PJS6630_S2_00001 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Panjit International Inc.. 20V P-MOSFET LOAD SWITCH WITH LE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 2.5V ~ 12V, package / case SOT-23-6.

Datasheet Request a Quote

In Stock: 7,029

Tiered Pricing USD

10,000+ $0.1353 —

20,000+ $0.1253 -7%

30,000+ $0.1202 -11%

50,000+ $0.1170 -13% BEST

Specifications

18 parameters

Product Status	Active
Switch Type	Load Switch
Number of Outputs	2
Ratio - Input:Output	1:2
Output Configuration	High Side
Output Type	-
Interface	-
Voltage - Load	2.5V ~ 20V
Voltage - Supply (Vcc/Vdd)	2.5V ~ 12V

Current - Output (Max)	3.6A
Rds On (Typ)	45mOhm
Input Type	-
Features	-
Fault Protection	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-6
Package / Case	SOT-23-6
